USTC-Core: Multi-Stage Pipelined Processor Design and Microarchitecture Exploration
Published:
🚀 Project Overview
During my academic journey at the University of Science and Technology of China (USTC), I served as the Teaching Assistant (TA) for the advanced Computer Architecture laboratory courses. Leading a talented team of co-TAs, I spearheaded the comprehensive redesign and construction of the entire core experimental framework from scratch, which has since served as the official open-source pedagogical baseline for hundreds of undergraduate students.
This repository documents the production-ready full-stack RTL infrastructure that we engineered for the students, charting a rigorous pedagogical milestone from single-cycle execution units to highly optimized, multi-stage pipelined processor cores running standard instruction sets (RISC-V variants).

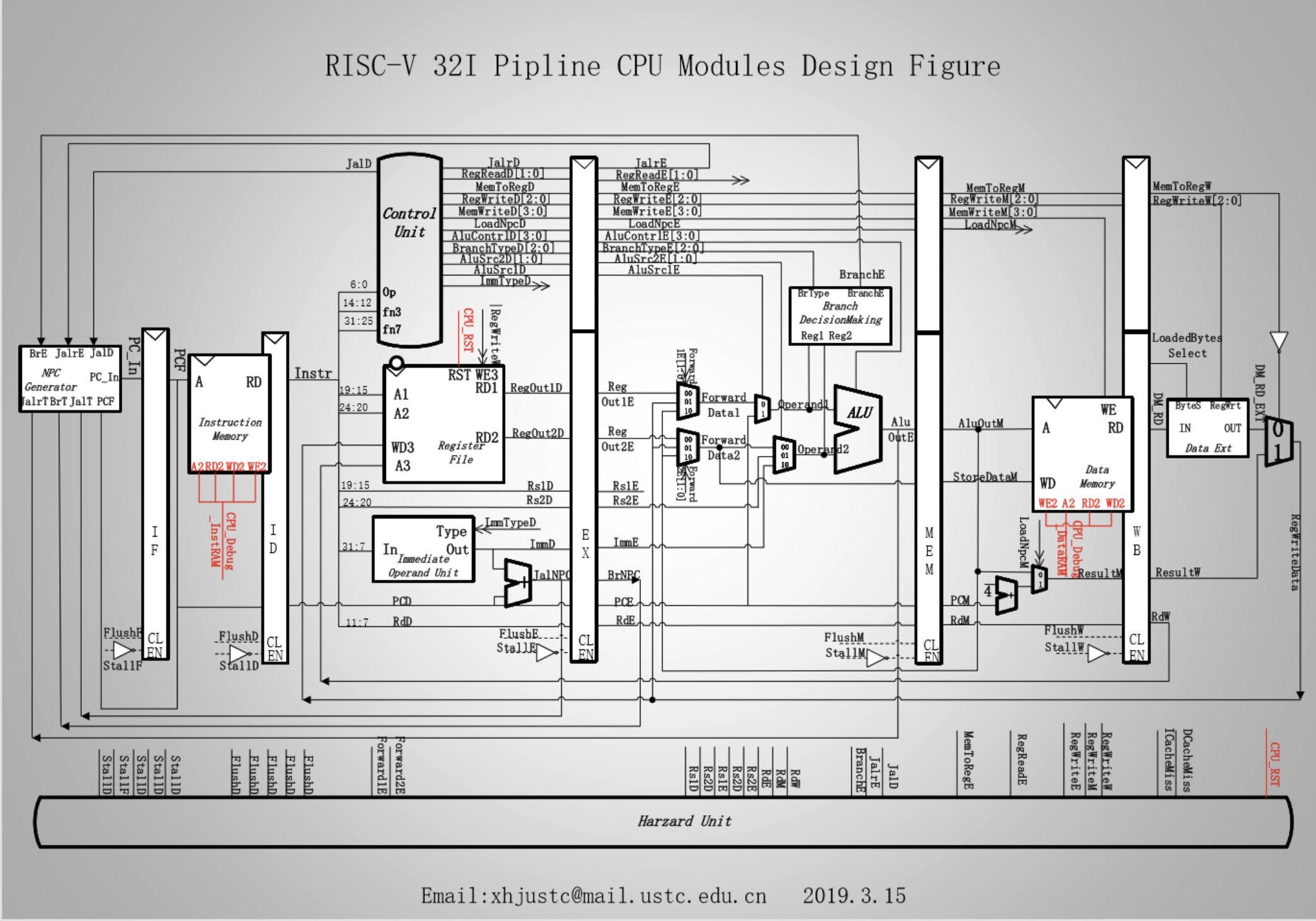

Figure: The customized microarchitecture datapath highlighting the decoupled control unit, hazard detection logic, and pipelined register stages.
🛠️ Microarchitecture & Implementation Details
- Decoupled 5-Stage Pipeline Construction: Structured the hardware logic into classical pipeline stages: Instruction Fetch (IF), Instruction Decode (ID), Execute (EX), Memory Access (MEM), and Write Back (WB).
- Full Hazard Detection & Forwarding Logic: Developed a robust hazard management subsystem entirely in Verilog. Implemented data forwarding (bypassing) paths to resolve RAW (Read-After-Write) dependencies without introducing artificial bubbles, and engineered predictive stalling mechanisms for load-use hazards and structural conflicts.
- Control Unit Co-Design: Designed a centralized control matrix that decodes opcodes and functional bits in the ID stage, dispatching precise synchronized control flags across execution boundaries.
- Testbench Validation & Simulation: Authored extensive testbenches to trace register files, PC boundaries, and memory interfaces under stress-test assembly workloads, ensuring 100% functional alignment with mathematical ISA specifications.
🌌 Hardware Lineage & Ecosystem Legacy
The core Verilog framework and modular testbenches designed for this course have evolved into a vital engineering legacy within USTC. It serves not just as a grading benchmark, but as an open, highly extensible sandbox that empowers junior students to build advanced hardware-software co-designs.
Building directly upon this foundational infrastructure, subsequent undergraduate cohorts have successfully driven the platform to its limits. Notably, talented junior peers (such as Liuly) have scaled this baseline into a fully featured RISC-V 32-bit (RV32I) ecosystem, orchestrating cutting-edge architectural enhancements and interactive software stacks:
- Dynamic Branch Prediction: Integrating a hardware BHT (Branch History Table) leveraging 2-bit saturating counters directly into the instruction fetch boundary to aggressively mask control hazards.
- Custom Memory Hierarchy: Crafting tightly-coupled, 2-Way Set-Associative Instruction and Data Caches to effectively bypass asynchronous Block-RAM access penalties and mitigate structural memory stalls.
- The “Greedy Snake” Bare-Metal System: Engineering custom Memory-Mapped I/O (MMIO) peripherals to interface with on-board push buttons and a VGA display module, culminating in a full-stack deployment where an interactive “Greedy Snake” game—implemented in C and cross-compiled into bare-metal binary—runs flawlessly on the physical FPGA-synthesized pipeline.

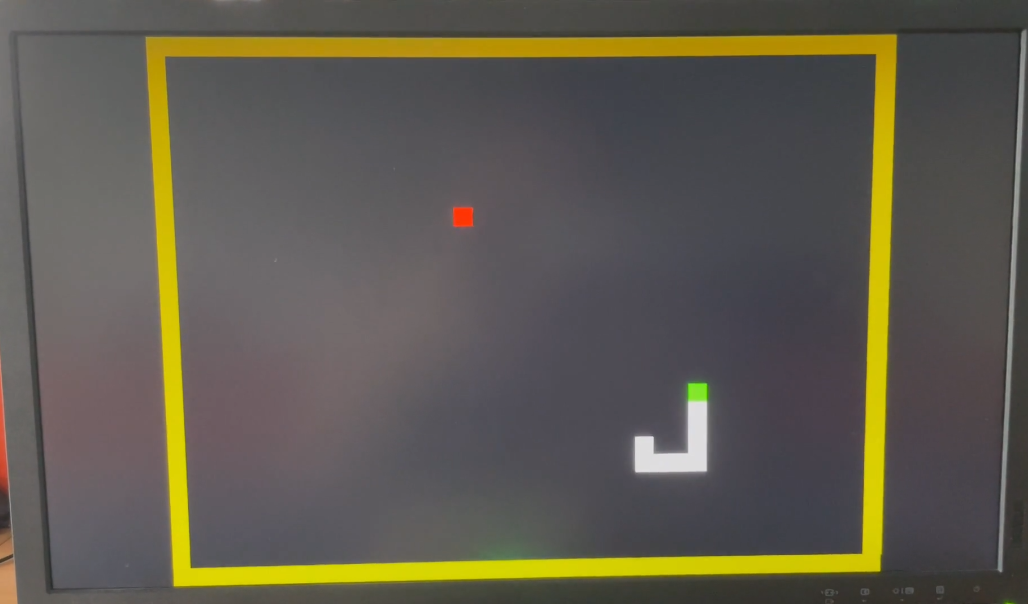

Figure: Live runtime rendering of the C-driven "Greedy Snake" game executing on the custom RV32I pipelined core.
